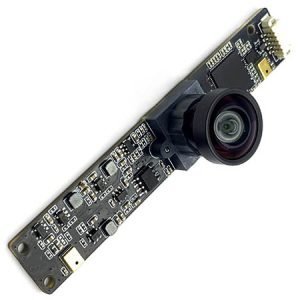

IMX378 4K 11MP Camera Module

WN-L2204.K328L HD 4K 11MP camera module is built around the Sony 1/2.3-inch IMX378 CMOS image sensor. Pixel size of 1.55µm, USB2.0 interface, 11 megapixels at a frame rate of 15fps, and the ability to capture 4K video at a frame rate of 30fps with a wide field of view make it an ideal choice for diverse applications.

The USB camera module is compliant with UVC standards and supports plug-and-play functionality on Windows, Android, Linux, and other operating systems. It is capable of capturing high-quality 11MP and 4K images and videos without any motion blur. The standard lens has a field of view of 150° without distortion, while other lenses with varying angles can also be configured to meet the specific requirements of customers.
IMX378 11MP Camera Module

Product Features

IMX378 11MP Camera Module
  • Module Size: 90*15mm
  • Max. Resolution: 3840H x 2880V
  • Pixel Size: 1.55*1.55μm
  • Output Formats: MJPEG, YUY2
  • Field of View: 150° without Distortion
  • Focus Mode: Fixed Focus, or Manual Focus
  • Shutter Mode: Rolling Shutter
  • Interface: High Speed USB2.0
  • Default 1.0 Meter USB Cable
  • UVC-compliant, Plug and Play Functionality
Datasheet Download

One-stop Customization

  • Look for a camera with specific size?
  • Need a specific firmware?
  • Expect a external housing or tube?
  • Find a specific wire or cable for connection?
  • Need extra functions integrated?
Camera Module Customization
WinideaTech offers customers comprehensive customization services for both firmware and hardware, tailored to their specific application requirements.
Camera Module Customization
Camera Module Applications

Product Applications

Camera Module Applications
WinideaTech camera modules appear in a variety of applications like kiosk, robot, machinery equipment, ATM machine, drones, automatic vending machine, video door phone, sanner, virtual reality, advisement player, TV box, intelligent refrigerator, attendance machine, safety box, notebook, tablet, toy, gymnastic equipment, game device, on-the-spot law enforcement, biological microscope, teaching system, interactive system, simple security system, voting system, exam system, driving learning system, endoscope, medical auxiliary equipment, etc.

Get A Free Consultation

Even if you only have a rudimentary understanding of embedded vision for your project, please do not hesitate to share your thoughts with us. Our engineers can provide industry-specific knowledge to assist you in making informed decisions.
  • Zhuhai WinideaTech Co.,Ltd.
  • +86 0756 2289950
  • camera@winideatech.com
  • http://winideatech.com
  • Floor 7, Block 4, No.216 Xingyuan Road, Xiangzhou, Zhuhai, GD 519000, China
  • Your personal information will remain completely confidential.
  • We'll attach great importance to your inquiry and answer it within 12 hours.
