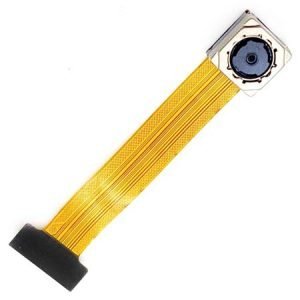

5MP OV5640 Camera Module

WN-OV5640A-MP HD 5MP OV5640 camera module from WinideaTech is built around the OmniVision 1/4.0-inch OV5640 CMOS image sensor. With a pixel size of 1.4µm, MIPI CSI interface, 5 megapixels resolution at a frame rate of 15fps and an expansive field of view, this device is the optimal choice for a diverse range of applications.

This OV5640 sensor is equipped with automatic image control functions, including automatic exposure control (AEC), automatic white balance (AWB), automatic band filter (ABF), automatic 50/60 Hz luminance detection, and automatic black level calibration (ABLC). It boasts high sensitivity, low crosstalk, low noise, and improved quantum efficiency.
5MP OV5640 Camera Module

Product Features

5MP OV5640 Camera Module
  • Module Length: 50mm
  • Max. Resolution: 2592H x 1944V
  • Pixel Size: 1.4*1.4μm
  • Field of View: 70.8°
  • Focus Mode: Autofocus, or Fixed Focus
  • Automatic Image Control Functions
  • High Sensitivity, Low Crosstalk, Low Noise
  • Shutter Mode: Rolling Shutter
  • Interface: 15-PIN MIPI CSI
  • Default 10cm FPC Cable
Datasheet Download

One-stop Customization

  • Look for a camera with specific pinout?
  • Need a specific sensor for your platform?
  • Expect a FPC with specific shape & dimensions?
  • Request built-in LED lights?
  • Need IR diodes integrated?
MIPI Camera Modules Customization
WinideaTech offers customers comprehensive customization services for both firmware and hardware, tailored to their specific application requirements.
MIPI Camera Modules Customization
Camera Module Applications

Product Applications

Camera Module Applications
WinideaTech camera modules appear in a variety of applications like kiosk, robot, machinery equipment, ATM machine, drones, automatic vending machine, video door phone, sanner, virtual reality, advisement player, TV box, intelligent refrigerator, attendance machine, safety box, notebook, tablet, toy, gymnastic equipment, game device, on-the-spot law enforcement, biological microscope, teaching system, interactive system, simple security system, voting system, exam system, driving learning system, endoscope, medical auxiliary equipment, etc.

Get A Free Consultation

Even if you only have a rudimentary understanding of embedded vision for your project, please do not hesitate to share your thoughts with us. Our engineers can provide industry-specific knowledge to assist you in making informed decisions.
  • Zhuhai WinideaTech Co.,Ltd.
  • +86 0756 2289950
  • camera@winideatech.com
  • http://winideatech.com
  • Floor 7, Block 4, No.216 Xingyuan Road, Xiangzhou, Zhuhai, GD 519000, China
  • Your personal information will remain completely confidential.
  • We'll attach great importance to your inquiry and answer it within 12 hours.

Related Products

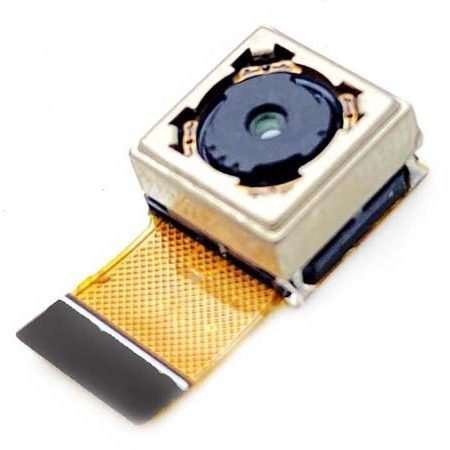

5MP OV5648 Camera Module
