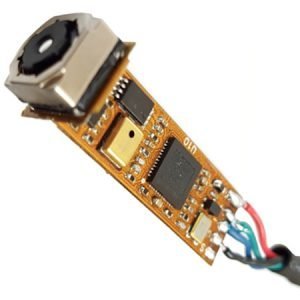

IMX179 HD 8MP Endoscope Module

WN-L1910.K91R HD 8MP endoscope module from WinideaTech is equipped with a Sony 1/3.2-inch IMX179 CMOS image sensor, providing professional-grade imaging capabilities. With a pixel size of 1.4µm, USB2.0 interface, autofocus and the ability to capture 8 megapixels at a frame rate of 15fps, this camera is an ideal choice for a wide range of applications.

The USB camera module is compliant with UVC standards and supports plug-and-play functionality on Windows, Android, Linux, and other operating systems. The device is capable of capturing high-quality 8MP images and videos, with a standard lens featuring a 75° field of view. Additionally, other lenses can be configured to meet the specific requirements of our customers.
IMX179 8MP Endoscope Module

Product Features

IMX179 8MP Endoscope Module
  • Module Size: 35.45*10mm
  • Max. Resolution: 3264H x 2448V
  • Pixel Size: 1.4*1.4μm
  • Output Formats: MJPEG, YUY2
  • Field of View: 75°
  • Focus Mode: Autofocus
  • Shutter Mode: Rolling Shutter
  • Interface: High Speed USB2.0
  • Default 1.0 Meter USB Cable
  • UVC-compliant, Plug and Play Functionality
Datasheet Download

One-stop Customization

  • Look for a camera with specific size?
  • Need a specific firmware?
  • Expect a external housing or tube?
  • Find a specific wire or cable for connection?
  • Need extra functions integrated?
Camera Module Customization
WinideaTech offers customers comprehensive customization services for both firmware and hardware, tailored to their specific application requirements.
Camera Module Customization
Camera Module Applications

Product Applications

Camera Module Applications
WinideaTech camera modules appear in a variety of applications like kiosk, robot, machinery equipment, ATM machine, drones, automatic vending machine, video door phone, sanner, virtual reality, advisement player, TV box, intelligent refrigerator, attendance machine, safety box, notebook, tablet, toy, gymnastic equipment, game device, on-the-spot law enforcement, biological microscope, teaching system, interactive system, simple security system, voting system, exam system, driving learning system, endoscope, medical auxiliary equipment, etc.

Get A Free Consultation

Even if you only have a rudimentary understanding of embedded vision for your project, please do not hesitate to share your thoughts with us. Our engineers will provide industry-specific knowledge to assist you in making informed decisions.
  • Zhuhai WinideaTech Co.,Ltd.
  • +86 0756 2289950
  • camera@winideatech.com
  • http://winideatech.com
  • Floor 7, Block 4, No.216 Xingyuan Road, Xiangzhou, Zhuhai, GD 519000, China
  • Your personal information will remain completely confidential.
  • We'll attach great importance to your inquiry and answer it within 12 hours.
