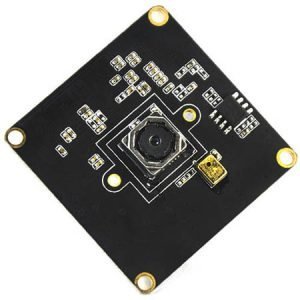

IMX214 13MP Camera Module

WN-L189.L48 HD 13MP camera module is built upon the Sony 1/3.06-inch IMX214 CMOS image sensor. With a USB2.0 interface, pixel size of 1.12µm, autofocus capability, 13-megapixel at a frame rate of 8fps, all while offering a field of view at 78° make it the ideal choice for a diverse range of applications.

The USB camera module is compliant with UVC standards and supports plug-and-play functionality on Windows, Android, Linux, and other operating systems. Additionally, it can also be configured with lenses featuring different viewing angles to meet the specific requirements of our customers.
IMX214 13MP Camera Module

Product Features

IMX214 13MP Camera Module
  • Module Size: 38*38mm
  • Max. Resolution: 4192H x 3104V
  • Pixel Size: 1.12*1.12μm
  • Output Formats: MJPEG, YUY2
  • Field of View: 78°
  • Focus Mode: Autofocus, Fixed Focus
  • Shutter Mode: Rolling Shutter
  • Interface: High Speed USB2.0
  • Default 1.0 Meter USB Cable
  • UVC-compliant, Plug and Play Functionality
Datasheet Download

One-stop Customization

  • Look for a camera with specific size?
  • Need a specific firmware?
  • Expect a external housing or tube?
  • Find a specific wire or cable for connection?
  • Need extra functions integrated?
Camera Module Customization
WinideaTech offers customers comprehensive customization services for both firmware and hardware, tailored to their specific application requirements.
Camera Module Customization
Camera Module Applications

Product Applications

Camera Module Applications
WinideaTech camera modules appear in a variety of applications like kiosk, robot, machinery equipment, ATM machine, drones, automatic vending machine, video door phone, sanner, virtual reality, advisement player, TV box, intelligent refrigerator, attendance machine, safety box, notebook, tablet, toy, gymnastic equipment, game device, on-the-spot law enforcement, biological microscope, teaching system, interactive system, simple security system, voting system, exam system, driving learning system, endoscope, medical auxiliary equipment, etc.

Get A Free Consultation

Even if you only have a rudimentary understanding of embedded vision for your project, please do not hesitate to share your thoughts with us. Our engineers will provide industry-specific knowledge to assist you in making informed decisions.
  • Zhuhai WinideaTech Co.,Ltd.
  • +86 0756 2289950
  • camera@winideatech.com
  • http://winideatech.com
  • Floor 7, Block 4, No.216 Xingyuan Road, Xiangzhou, Zhuhai, GD 519000, China
  • Your personal information will remain completely confidential.
  • We'll attach great importance to your inquiry and answer it within 12 hours.
