JX-F22 Full HD 2MP Camera Module

WN-L187.K35A HD 2MP camera module from WinideaTech is built upon the Silicon Optronics 1/2.7-inch JX-F22 CMOS image sensor, showcasing a professional-grade imaging solution. With a pixel size of 3µm, the ability to capture 2 megapixels at a frame rate of 30fps, and an expansive field of view, this device is the optimal choice for a diverse range of applications.

This USB camera module is compliant with UVC standards, enabling plug-and-play functionality across Windows, Android, Linux and other operating systems. It is capable of capturing HD 1080P images and videos with no motion blur. Additionally, lenses with various viewing angles can be configured to meet the specific needs of our customers.

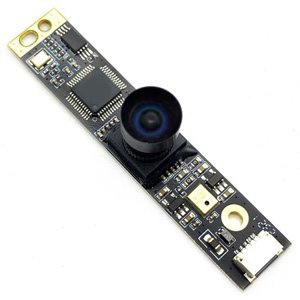

JX-F22 1080P Camera Module

Product Features

JX-F22 1080P Camera Module
  • Module Size: 62*12mm
  • Max. Resolution: 1920H x 1080V
  • Pixel Size: 3.0*3.0μm
  • Output Formats: MJPEG, YUY2
  • Field of View: 100°
  • Focus Mode: Fixed Focus, or Manual Focus
  • Shutter Mode: Rolling Shutter
  • Interface: High Speed USB2.0
  • Default 1.0 Meter USB Cable
  • UVC-compliant, Plug and Play Functionality
Datasheet Download

One-stop Customization

  • Look for a camera with specific size?
  • Need a specific firmware?
  • Expect a external housing or tube?
  • Find a specific wire or cable for connection?
  • Need extra functions integrated?
Camera Module Customization
WinideaTech offers customers comprehensive customization services for both firmware and hardware, tailored to their specific application requirements.
Camera Module Customization
Camera Module Applications

Product Applications

Camera Module Applications
WinideaTech camera modules appear in a variety of applications like kiosk, robot, machinery equipment, ATM machine, drones, automatic vending machine, video door phone, sanner, virtual reality, advisement player, TV box, intelligent refrigerator, attendance machine, safety box, notebook, tablet, toy, gymnastic equipment, game device, on-the-spot law enforcement, biological microscope, teaching system, interactive system, simple security system, voting system, exam system, driving learning system, endoscope, medical auxiliary equipment, etc.

Get A Free Consultation

Even if you only have a rudimentary understanding of embedded vision for your project, please do not hesitate to share your thoughts with us. WinideaTech engineers will provide industry-specific knowledge to assist you in making informed decisions.
  • Zhuhai WinideaTech Co.,Ltd.
  • +86 0756 2289950
  • camera@winideatech.com
  • http://winideatech.com
  • Floor 7, Block 4, No.216 Xingyuan Road, Xiangzhou, Zhuhai, GD 519000, China
  • Your personal information will remain completely confidential.
  • We'll attach great importance to your inquiry and answer it within 12 hours.
