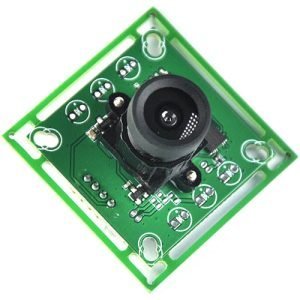

JX-H62 720P Camera Module

WinideaTech’s USB2.0 HD 720P camera module is equipped with Silicon Optronics’ 1/4.0-inch JX-H62 CMOS image sensor, featuring a pixel size of 3µm and a frame rate of up to 30fps at one megapixel resolution, as well as a wide field of view. It’s a perfect choice for a wide range of applications.

This USB camera module is compliant with the UVC standard and supports plug-and-play functionality on Windows, Android, Linux, and other operating systems. It is capable of capturing HD 720P images and videos without motion blur.

The module comes equipped with a standard lens that offers a wide field of view. However, we can also configure it to include lenses with different viewing angles based on our customers’ requirements.
JX-H62 720P Camera Module

Product Features

JX-H62 720P Camera Module
  • Module Code: WN-L2005.K109L
  • Module Size: 38*38mm, or 32*32mm
  • Max. Resolution: 1280H x 720V
  • Pixel Size: 3.0*3.0μm
  • Output Formats: MJPEG, YUY2
  • Field of View: 120°
  • Focus Mode: Fixed Focus, or Manual Focus
  • Shutter Mode: Rolling Shutter
  • Interface: High Speed USB2.0
  • Default 1.0 Meter USB Cable
  • UVC-compliant, Plug and Play Functionality
Datasheet Download

One-stop Customization

  • Look for a camera with specific size?
  • Need a specific firmware?
  • Expect a external housing or tube?
  • Find a specific wire or cable for connection?
  • Need extra functions integrated?
Camera Module Customization
WinideaTech offers customers comprehensive customization services for both firmware and hardware, tailored to their specific application requirements.
Camera Module Customization
Camera Module Applications

Product Applications

Camera Module Applications
WinideaTech camera modules appear in a variety of applications like kiosk, robot, machinery equipment, ATM machine, drones, automatic vending machine, video door phone, sanner, virtual reality, advisement player, TV box, intelligent refrigerator, attendance machine, safety box, notebook, tablet, toy, gymnastic equipment, game device, on-the-spot law enforcement, biological microscope, teaching system, interactive system, simple security system, voting system, exam system, driving learning system, endoscope, medical auxiliary equipment, etc.

Get A Free Consultation

Even if you only have a rudimentary understanding of embedded vision for your project, please do not hesitate to share your thoughts with us. Our engineers can provide industry-specific knowledge to assist you in making informed decisions.
